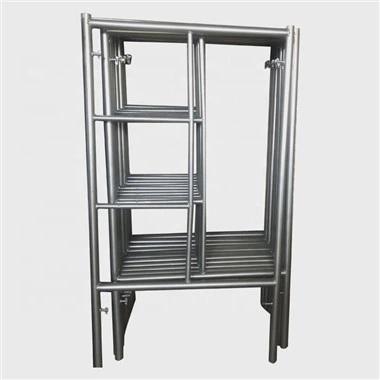

Scaffolding Frame

Product Name:Frame scaffold,Shoring frames,Main frame

Standard:ANSI/SSFI SC100-5/05

Material:Q195 & Q235 Steel Strip

Finishing:Pre- galvanized or painted

Types:Walk through frame, Mason frame, Ladder frame, Shoring frame, Narrow frame

frame type scaffolding

Frame scaffolding system are made of high strength tubing and can be easily assembled .The most important thing is that it can provide a stable and safe working platform at high altitudes.

frame scaffold components

Cross Braces,Base Plates,Guard Rails

Guard Rails Post,Lock Pins，Scaffolding Plank

Walk Through Frames

mason frame

ladder frame

Frame components

American Standard Walk Through Frame Scaffolding
Item No.	Width	Height	weight
YFAFW 1519	1524 mm/ 5’	1930.4 mm/ 6’4”	21.45 kg / 47.25 lbs
YFAFW 0919	914.4 mm/ 3’	1930.4 mm/ 6’4”	18.73 kg / 41.25 lbs
YFAFW 1520	1524 mm/ 5’	2006.6 mm/ 6’7”	22.84 kg / 50.32 lbs
YFAFW 0920	914.4 mm/ 3’	2006.6 mm/ 6’7”	18.31 kg / 43.42 lbs
YFAFW 1019	1066.8 mm/ 42”	1930.4 mm/ 6’4”	19.18 kg / 42.24 lbs

Generally,standard size 5’x6’4”, 5’x6’7”, 3’x6’4” ,3’x6’7”,42”x6’4” are export to the US and Canada. 1219x1930mm,1219x1700mm, 1219x1524mm, 914*1930 mm.914x1700mm are manufactured for Asia countries.

Asian Standard Walk Through Frame / H Frame Scaffolding
Item No.	*Dimension(WH)**	Weight
YFHF 1219	1219*1930 mm	14.3 kg
YFHF 1217	1219*1700 mm	12.8 kg
YFHF 1215	1219*1524 mm	11.4 kg
YFHF 0919	914*1930 mm	13.4 kg
YFHF 0917	914*1700 mm	12.3 kg

You can find Pre-galvanized,Hot dipped galvanized, powder coated, and painted walk through scaffolding frames and accessories here.

Walk thru - Apartment frame( OD: 1.625 ”)				Apartment frame with 18” ladder ( OD: 1.625 ”)
Item No.	Width	Height	weight	Item No.	Width	Height	weight
YFAFA 0926	914.4 mm/ 3’	2641.6 mm/ 8’8”	21.34 kg /47 lbs	YFAFAL 0926	914.4 mm/ 3’	2641.6 mm/ 8’8”	21.34 kg /47 lbs
YFAFA 0932	914.4 mm/3’	3251.2 mm/ 10’8”	25.22 kg /55.56 lbs	YFAFAL 0932	914.4 mm/3’	3251.2 mm/ 10’8”	37.07 kg /81.65 lbs
YFAFA 0935	914.4 mm/3’	3556 mm/11’8”	26.51 kg / 58.4 lbs	YFAFAL 0935	914.4 mm/3’	3556 mm/11’8”	40 kg / 88.11 lbs

Ideal for large-scale construction projects where need to move frequently and safely within the scaffolding area.Commonly used in high-rise building construction, major renovations, and large industrial projects.

American Standard Mason Frame Scaffolding
Item No.	Width	Height	weight
YFAFM 1519	1524 mm/ 5’	1930.4 mm/ 6’4”	20.43 kg / 45 lbs
YFAFM 1515	1524 mm/ 5’	1524 mm/ 5’	16.87 kg / 37.15 lbs
YFAFM 1512	1524 mm/ 5’	1219.2 mm/ 4’	15.30 kg / 33.7 lbs
YFAFM 1509	1524 mm/ 5’	914.4 mm/ 3’	12.53 kg / 27.6 lbs
YFAFM 1506	1524 mm/ 5’	609.6 mm/ 2’	11.31 kg /24.91 lbs

Item No.	*Dimension(WH)**	Weight
YFMF 1219	1219*1930 mm	15.2 kg
YFMF 1217	1219*1700 mm	13.5 kg
YFMF 1215	1219*1524 mm	10.82 kg
YFMF 1209	1219*914 mm	8.7 kg
YFMF 0915	914*1524 mm	10.9 kg

Mainly used in masonry-related construction activities like bricklaying, blockwork, and stone masonry.Suitable for construction of walls, chimneys, and other masonry structures.

Mason Frame Type 1

Mason Frame Type 2

Mason Frame Type 3

American Standard Ladder Frame Scaffolding
Item No.	Width	Height	weight
YFAFN 0919	914.4 mm/ 3’	1930.4 mm/ 6’4”	16.00 kg / 35.24 lbs
YFAFN 0915	914.4 mm/3’	1524 mm/ 5’	14.41 kg / 31.75 lbs
YFAFN 0909	914.4 mm/3’	914.4 mm/3’	10.15 kg / 22.36 lbs
YFAFN 0615	609.6 mm/ 2’	1524 mm/ 5’	11.67 kg / 25.7 lbs
YFAFN 0609	609.6 mm/ 2’	914.4 mm/3’	7.81 kg /17.2 lbs

Usually used for short-term, light work such as simple painting or small maintenance tasks. Generally used for home decoration projects, small-scale repairs and maintenance

Snap on Cross Braces
Item No.	A	B	C	weight
YFSOCB 1508	1524 mm/ 5’	812.8 mm/ 32”	1727.2 mm/ 5’8”	4.36 kg / 9.6 lbs
YFSOCB 1512	1524 mm/ 5’	1219.2 mm/ 48”	1955.8mm/ 6’5”	4.50 kg / 9.92 lbs
YFSOCB 2108	2133.6 mm/7’	812.8 mm/ 32”	2159 mm/ 7’1”	5.60 kg / 12.34 lbs
YFSOCB 2112	2133.6 mm/7’	1219.2 mm/ 48”	2463.8 mm/ 8’1”	5.70 kg / 12.56 lbs
YFSOCB 3008	3048 mm/ 10’	812.8 mm/ 32”	3149.6 mm/ 10’4”	7.50 kg /16.53 lbs
YFSOCB 3012	3048 mm/ 10’	1219.2 mm/ 48”	3276.6 mm/ 10’9”	7.81 kg /17.2 lbs

Punch hole Cross Braces
Item No.	A	B	C	weight
YFPHCB 1512	1524 mm/ 5’	1219.2 mm/ 4’	1951.74 mm/76.84"	4.75 kg / 10.47 lbs
YFPHCB 1509	1524 mm/ 5’	914.4 mm/ 3’	1777.24 mm/69.97”	4.04 kg / 8.9 lbs
YFPHCB 2112	2133.6 mm/7’	1219.2 mm/ 4’	2457.45 mm/96.75"	5.82 kg / 12.83 lbs
YFPHCB 2109	2133.6 mm/7’	914.4 mm/ 3’	2321.31mm/91.39"	5.63 kg / 12.4 lbs
YFPHCB 3012	3048 mm/ 10’	1219.2 mm/ 4’	3282.7mm/129.24”	7.85 kg /17.3 lbs
YFPHCB 3009	3048 mm/ 10’	914.4 mm/ 3’	3182.1mm/125.28"	7.63 kg /16.8 lbs

Punch hole Guard Rail
Item No.	Length	Tube OD	Weight
YFPHGR 3002	3048 mm/ 10’	25.4 mm / 1”	4.84 kg / 10.65 lbs
YFPHGR 2102	2133.6 mm/7’	25.4 mm / 1”	3.27 kg / 7.2 lbs
YFPHGR 1802	1828.8mm/ 6’	25.4 mm / 1”	2.20 kg / 4.85 lbs
YFPHGR 1502	1524 mm/ 5’	25.4 mm / 1”	1.85 kg / 4.08 lbs
YFPHGR 1202	1219.2 mm/ 4’	25.4 mm / 1”	1.50 kg / 3.3 lbs
YFPHGR 0902	914.4 mm/ 3’	25.4 mm / 1”	1.15 kg / 2.53 lbs

Snap on Guard Rail
Item No.	Length	Tube OD	Weight
YFSOGR 3003	3048 mm/ 10’	31.75 mm / 1.25”	4.5 kg / 9.92 lbs
YFSOGR 2103	2133.6 mm/7’	31.75 mm / 1.25”	3.8 kg / 8.37 lbs
YFSOGR 1503	1524 mm/ 5’	31.75 mm / 1.25”	2.9 kg / 6.39 lbs
YFSOGR 0903	914.4 mm/ 3’	31.75 mm / 1.25”	2.0 kg / 4.4 lbs

Formwork Tie Nut

Formwork Tie Rod

Formwork Steel Cones

Wing Nut for Tie Rod

Formwork Accessories Types

Formwork accessories include formwork clamps, formwork rod and rebars, formwork wing nut, formwork spring clips, waler plates, formwork steel cones,anchor nut,formwork water stopper, formwork sleeves, formwork clamps and couplings etc.

Formwork Clamps:Include alignment clamps, wedge clamps, wedge lock clamps, rapid clamps, adjustable steel formwork clamps.
Formwork Wing Nuts are formwork concrete tie rod nuts:Include a two-wing nut and anchor nut with a round plate.

Formwork Water Stopper also called tie rod water stopper. It is used to connect 2 tie rods in the concrete forming.
Formwork Waler Plates:Waler plates are the formwork accessories used together with the wing nuts and tie rods.
Formwork Tie Nuts also called combination nut. It is integrated formwork wing nut and washer plate.

Frame scaffolding products

First 12 Last 1/2

Application Of Frame Scaffolding

Construction:
Building Construction:Such as bricklaying, plastering, installing windows and doors, and conducting electrical and plumbing work.
Bridge Construction:Provides access for tasks like pouring concrete, installing reinforcement bars, and performing finishing work.
Road and Highway Construction: Frame scaffolding is used for tasks such as building retaining walls, installing streetlights and traffic signs, and conducting repair work on overpasses and underpasses.

Industrial:
Factory and Plant Maintenance: In industrial facilities such as factories, power plants, and refineries, frame scaffolding is used for tasks like painting the interior and exterior of the facility, replacing damaged equipment, and conducting inspections of the structure.
Shipbuilding and Repair: Frame scaffolding is used to provide access to the hull and interior of ships during the construction and repair process. To perform tasks such as welding, painting, and installing equipment.
Oil and Gas Industry: In the oil and gas sector, frame scaffolding is used for maintenance and repair work on drilling rigs, storage tanks, and pipelines.

Event and Stage Setup:
Concerts and Festivals: Frame scaffolding can safely assemble and disassemble the stage, which can be customized to fit the specific requirements of each event.
Exhibitions and Trade Shows: In exhibition halls and trade show venues, frame scaffolding is used to build display stands and booths.

Why Choose Youfa Group

Tianjin Youfa Steel Pipe Group Co., Ltd. was established on July 1, 2000, Youfa is a large scale steel products manufacturing enterprise. In December 2020, Youfa Group successfully landed on the main board of Shanghai Stock Exchange .We mainly manufacture ERW steel pipe, galvanized steel pipe, hollow section steel pipes, SSAW steel pipe, plastic lining composite pipe, plastic coated steel pipe, stainless steel pipe and pipe fitting, and scaffolding, etc.

Besides headquartering in Tianjin, currently we have 13 subsidiariesand branches in Tangshan, Handan, Shaanxi and Liyang. Currently, there are totally about 9000 employees and 293 production lines in 13 factories, 3 national accredited laboratory, and 1 Tianjin government accreditedbusiness technology center.

Tangshan Youfa New Building Equipment Co., Ltd., as one of the subsidiaries of YOUFA Group, mainly produces scaffolding products. The product range includes scaffolding pipe, ring-lock scaffolding system, frame scaffolding system, coupler system scaffolding, cup-lock scaffolding system, steel props and the accessories like screw base jack and u head jack.All scaffolding pipes are tested compliant to standards of BS1139, EN39, GB/T 3091 & GB/T13793, etc.

24⁺

Years Manufacturer

293

Production Lines

Production Bases

178

Patent Technologies

YOUFA Scaffolding Frame Surface Treatment

Galvanized scaffolding frames

Used in both indoor and outdoor construction projects, including building construction, bridge repair, and industrial maintenance. They are suitable for long-term use and can withstand the rigors of heavy-duty construction work

Powder-coated scaffolding frames

Used in commercial and residential construction projects where appearance and durability are important. They are also suitable for indoor applications or in areas where the corrosion risk is relatively low.

Painting scaffolding frames

Used in small-scale construction projects or for refurbishing existing scaffolding. It is also used in situations where a quick and simple surface treatment is required. However, it may require more frequent maintenance and touch-ups.
