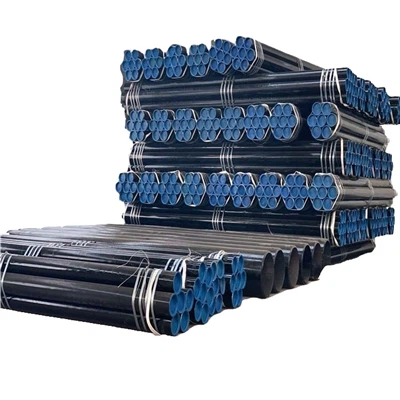

Seamless Pipe
Product Name: SMLS Pipe,Seamless Carbon Steel Pipe,Seamless Tubes
(O.D) Outer:13.7-610mm
Wall Thickness:Sch10,Sch20,Std,Sch40,Sch60,XS,Sch80,Sch100,
Sch120,Sch160,XXS
Pipe Ends:Plain ends Or Beveled ends
Surface:Bare or Black Painted
Length: 2m~12mtr
Standard: ASTM A53 / API 5L / ASTM A106 / GB8163-1999 / ASME B36.10M-1996.
Description: Carbon seamless steel pipes are perforated from whole round steel, and steel pipes without welds on the surface are called seamless steel pipes.
carbon steel seamless pipe Specification
As one of the most professional carbon steel pipe manufacturers in China, in addition to the following sizes, Youfa can customize the production of larger seamless steel pipes according to specific needs. For more information about dimensions, please contact Youfa immediately.
| DN | NB(inch) | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| (mm) | (mm) | (mm) | WT | WT | WT | WT | WT | WT | WT | WT | WT | WT | WT | WT | WT |
| 15 | 1/2" | 21.3 | 2.11 | - | 2.41 | 2.77 | 2.77 | - | 3.73 | 3.73 | - | - | - | 4.78 | 7.47 |
| 20 | 3/4" | 26.7 | 2.11 | - | 2.41 | 2.87 | 2.87 | - | 3.91 | 3.91 | - | - | - | 5.56 | 7.82 |
| 25 | 1" | 33.4 | 2.77 | - | 2.9 | 3.38 | 3.38 | - | 4.55 | 4.55 | - | - | - | 6.35 | 9.09 |
| 32 | 1.1/4" | 42.2 | 2.77 | - | 2.97 | 3.56 | 3.56 | - | 4.85 | 4.85 | - | - | - | 6.35 | 9.7 |
| 40 | 1.1/2" | 48.3 | 2.77 | - | 3.18 | 3.68 | 3.68 | - | 5.08 | 5.08 | - | - | - | 7.14 | 10.15 |
| 50 | 2" | 60.3 | 2.77 | - | 3.18 | 3.91 | 3.91 | - | 5.54 | 5.54 | - | - | - | 8.74 | 11.07 |
| 65 | 2.1/2" | 73 | 3.05 | - | 4.78 | 5.16 | 5.16 | - | 7.01 | 7.01 | - | - | - | 9.53 | 14.02 |
| 80 | 3" | 88.9 | 3.05 | - | 4.78 | 5.49 | 5.49 | - | 7.62 | 7.62 | - | - | - | 11.13 | 15.25 |
| 90 | 3.1/2" | 101.6 | 3.05 | - | 4.78 | 5.74 | 5.74 | - | 8.08 | 8.08 | - | - | - | - | - |
| 100 | 4" | 114.3 | 3.05 | - | 4.78 | 6.02 | 6.02 | - | 8.56 | 8.56 | - | 11.13 | - | 13.49 | 17.12 |
| 125 | 5" | 141.3 | 3.4 | - | - | 6.55 | 6.55 | - | 9.53 | 9.53 | - | 12.7 | - | 15.88 | 19.05 |
| 150 | 6" | 168.3 | 3.4 | - | - | 7.11 | 7.11 | - | 10.97 | 10.97 | - | 14.27 | - | 18.26 | 21.95 |
| 200 | 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | - |
| 400 | 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | - |
| 450 | 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | - |
| 500 | 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | - |
| 550 | 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | - | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | - |
| 600 | 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | - |

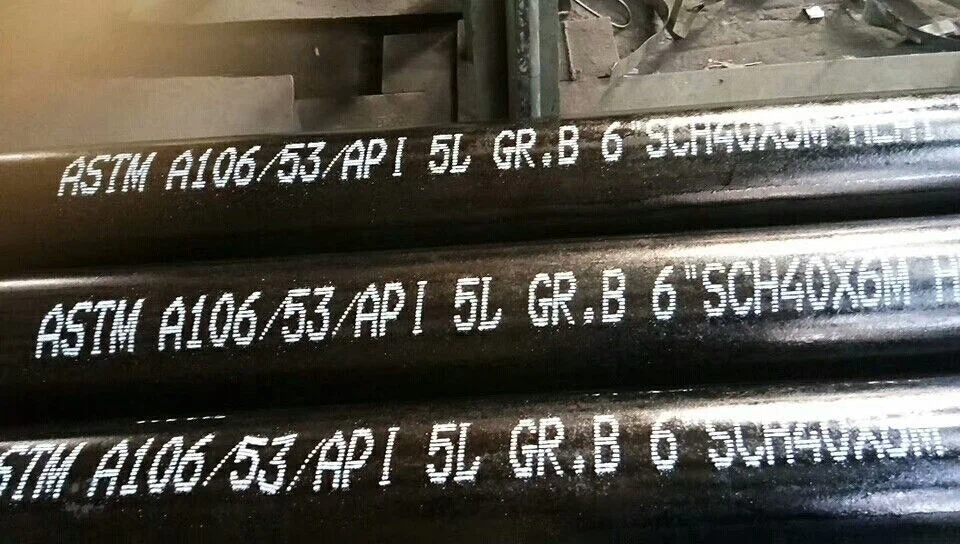

seamless steel pipe standard
 |
 |
 |
 |
 |
API 5L , ASTM A53 and A106
In terms of chemical composition, the carbon content in ASTM A53 Grade B and ASTM A106 Grade B is relatively high.In terms of tensile strength and yield strength, ASTM A53 grade B is equivalent to ASTM A106 grade A
In summary, ASTM A53 and ASTM A106 are relatively similar in terms of chemical composition and mechanical properties.API 5L has different chemical composition and mechanical performance requirements based on different steel grades to meet different pipeline application needs
| Standard | Grade | Chemical Components (%) | Mechanical Properties | |||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| ASTM A53 | A | ≤0.25 | - | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 |
| B | ≤0.30 | - | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | |
| ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 |
| B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | |
| PI 5L PSL1 | A | 0.22 | - | 0.9 | 0.03 | 0.03 | ≥331 | ≥207 |
| B | 0.28 | - | 1.2 | 0.03 | 0.03 | ≥414 | ≥241 | |
| X42 | 0.28 | - | 1.3 | 0.03 | 0.03 | ≥414 | ≥290 | |
| X46 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥434 | ≥317 | |
| X52 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥455 | ≥359 | |
| X56 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥490 | ≥386 | |
| X60 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥517 | ≥448 | |
| X65 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥531 | ≥448 | |
| X70 | 0.28 | - | 1.4 | 0.03 | 0.03 | ≥565 | ≥483 | |
| API 5L PSL2 | B | 0.24 | - | 1.2 | 0.025 | 0.015 | ≥414 | ≥241 |
| X42 | 0.24 | - | 1.3 | 0.025 | 0.015 | ≥414 | ≥290 | |
| X46 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥434 | ≥317 | |
| X52 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥455 | ≥359 | |
| X56 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥490 | ≥386 | |
| X60 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥517 | ≥414 | |
| X65 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥531 | ≥448 | |
| X70 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥565 | ≥483 | |
| X80 | 0.24 | - | 1.4 | 0.025 | 0.015 | ≥621 | ≥552 | |
seamless steel pipe Process
In the manufacturing process of seamless carbon steel pipes, the following steps should be noted:
Heating:Ensure uniform heating to avoid local overheating or underheating of the pipe blank
Piercing:Monitor the deformation of the pipe blank during the piercing process to prevent piercing defects such as cracks and folds.
Rolling:Whether it's hot rolling or cold rolling, precisely control parameters
Heat Treatment:Select an appropriate heat treatment process (such as annealing, normalizing, quenching, tempering, etc.) and strictly control parameters like temperature, time, and cooling rate.
 |
 |
 |

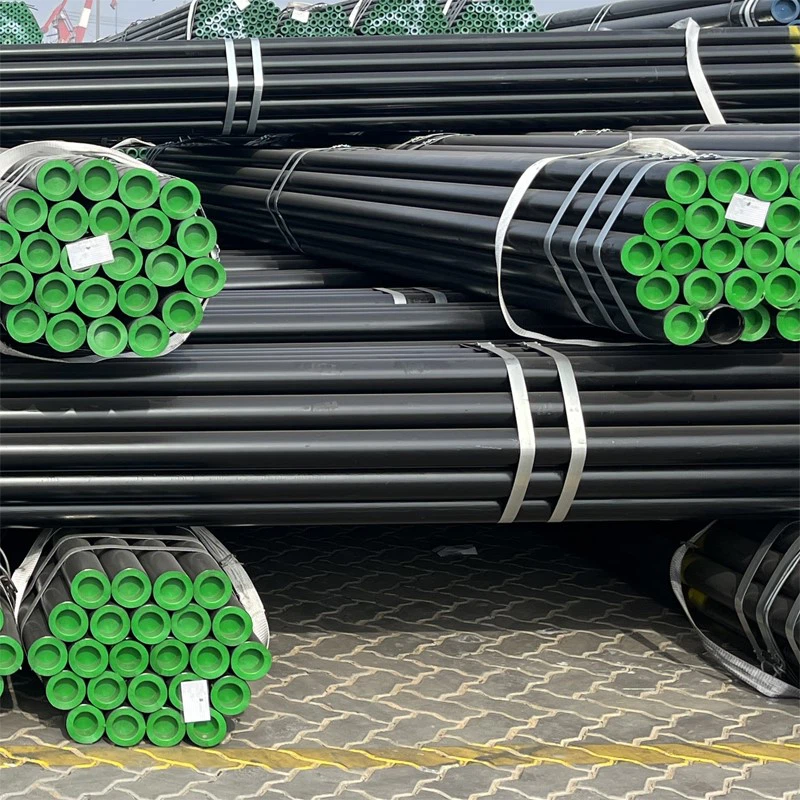

seamless steel tube Packing & Loading
 |
 |
 |
 |
 |
