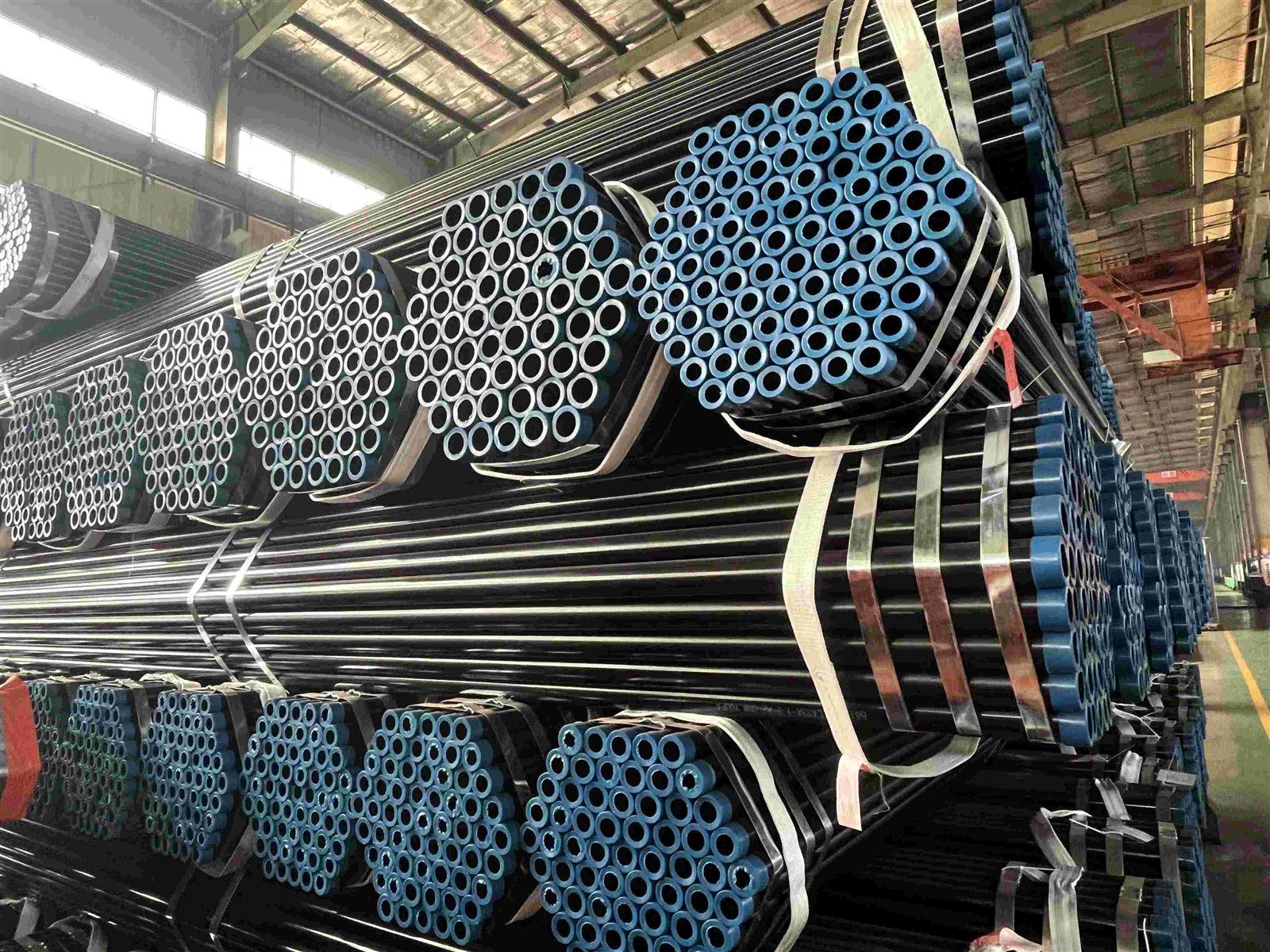

ERW Steel Pipe
Product Name: ERW Steel Pipe, Electric Resistance Welded Pipe
Size:DN15-300mm
Material:Q195,Q235,Q355
Wall thickness: 2mm~20mm
Pipe Ends:Bevelled, Plain, Grooved,Threaded
Length: 1m~12mtr
Surface Treatment: Bare, Painting Black, Galvanized, Anti-corrosion 3PE PP/EP/FBE coating et
Standard: API 5L, ASTM A53, ASTM A795, BS1387,BS1139,ASTM A252, ISO65, DIN2440, , EN10255, EN39, JIS3444, GB/T 3091 & GB/T13793.
Description:Electric Resistance Welded Steel Pipe is a type of steel pipe manufactured by forming flat steel strips into a cylindrical shape and then welding the seam together using electric resistance heating.
eRW welded steel pipe specifications
Usually, the maximum outer diameter of ERW pipes is 24 inches. As one of the most professional ERW steel pipes manufacturers in China, Youfa can reach sizes of 26 inches or even larger. For more information on sizes, please contact Youfa.
| Standard Wall Thickness |
|
|||||||||
| INCH | Outside Diameter | SCH 10WT | SCH 20WT | SCH 40WT | SCH 60WT | SCH 80WT | SCH 100WT | SCH 160WT | XXS | |
| (mm) | (mm) | (mm) | (mm） | (mm) | （mm) | (mm) | （mm) | (mm) | ||
| 1/4” | 13.7 | 2.24 | 3.02 | |||||||
| 3/8” | 17.1 | 2.31 | 3.2 | |||||||
| 1/2” | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | ||||
| 3/4" | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | ||||
| 1" | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | ||||
| 1-1/4" | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | 9.7 | ||||
| 1-1/2" | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | ||||
| 2" | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 |
|
|||
| 2-1/2" | 73 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | ||||
| 3" | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | ||||
| 3-1/2" | 101.6 | 3.05 | 5.74 | 8.08 | ||||||
| 4" | 114.3 | 3.05 | 4.5 | 6.02 | 8.56 | 13.49 | 17.12 | |||
| 5" | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | 19.05 | ||||
| 6" | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | 21.95 | ||||
| 8" | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.7 | 15.09 | 23.01 | 22.23 | |
| 10" | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 | 25.4 |
|
| 12" | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 | 25.4 | |
| 14" | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 | ||
| 16" | 406 | 6.35 | 7.92 | 12.7 | 16.66 | 21.44 | 26.19 | 40.49 | ||
| 18" | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 | ||
| 20" | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 | ||
| 22" | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | |||
| 24" | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 | ||
ERW Steel Pipe Surface Treatment
Youfa steel pipe can provide various end treatment methods for ERW steel pipes, such as
galvanized,painting black, oiling, anti-corrosion 3PE/FBE coating etc.
eRW welded steel tube standard
Youfa Group provide high quality control ERW Steel Pipe in ASTM, API, JIS, BSI, EN standard with API, JIS, CE and ISO certifications.
| Youfa has a dedicated steel pipe quality and testing center | ||
 |
 |
 |
| Direct reading spectrometer | Impact Tester | Pipe Bend Test Machine |
YOUFA Certificate
| Standard | Class | Grade | Chemical Analysis(%) | Mechanical Properties(min)(Mpa) | ||||
| C | Mn | P | S | Tensile Strength | Yield Strength | |||
| API 5L | PSL1 | B | 0.26 | 1.2 | 0.03 | 0.03 | 414 | 241 |
| X42 | 0.26 | 1.3 | 0.03 | 0.03 | 414 | 290 | ||
| X46 | 0.26 | 1.4 | 0.03 | 0.03 | 434 | 317 | ||
| X52 | 0.26 | 1.4 | 0.03 | 0.03 | 455 | 359 | ||
| X56 | 0.26 | 1.4 | 0.03 | 0.03 | 490 | 386 | ||
| X60 | 0.26 | 1.4 | 0.03 | 0.03 | 517 | 414 | ||
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 531 | 448 | ||
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 565 | 483 | ||
| PSL2 | B | 0.22 | 1.2 | 0.025 | 0.015 | 414 | 241 | |
| X42 | 0.22 | 1.3 | 0.025 | 0.015 | 414 | 290 | ||
| X46 | 0.22 | 1.4 | 0.025 | 0.015 | 434 | 317 | ||
| X52 | 0.22 | 1.4 | 0.025 | 0.015 | 455 | 359 | ||
| X56 | 0.22 | 1.4 | 0.025 | 0.015 | 490 | 386 | ||
| X60 | 0.22 | 1.4 | 0.025 | 0.015 | 517 | 414 | ||
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 531 | 448 | ||
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 565 | 483 | ||
| X80 | 0.22 | 1.85 | 0.025 | 0.015 | 621 | 552 | ||
eRW carbon steel pipe manufacturing
In the production of Electric Resistance Welded carbon steel pipes, several steps require special attention as they have a significant impact on the quality and performance of the final product:
Strip Forming
The dimensions of the resulting pipe, including the diameter and wall thickness, depend on this step.Special attention must be paid to the alignment of the edges of the strip as they are brought together for welding.
Welding
The quality of the weld determines the ability of the pipe to withstand internal and external pressures, as well as its resistance to corrosion and mechanical damage.
Inspection and Testing
Mechanical testing such as tensile testing and hardness testing should be conducted to verify the mechanical properties of the carbon steel. Dimensional checks are also important to ensure that the pipes have the correct diameter, wall thickness, and length.
ERW tube Packing & Loading
 |
 |
 |
 |
 |
1. Plastic caps plugged at the two sides of pipe ends
2. Should be avoided by the steel strapping and transport damage
3. Bundled signs should be uniform and consistent
4. The same bundle(batch) of steel pipe should be came from the same furnace.
5. The steel pipe has the same furnace number, the same steel grade, the same specifications.
eRW round tube products
eRW pipe application
Building Structures: Used for columns and beams, providing the necessary structural support to hold up the weight of the building and To form the framework that can withstand various loads such as wind, gravity, and seismic forces.
Plumbing and Heating: ERW pipes are used to transport water for various purposes such as drinking, bathing, and sanitation. They are also used in heating systems to circulate hot water or steam.
Oil and Gas: used to transport crude oil, natural gas, and other petroleum products over long distances. Additionally, in oil and gas exploration and production, ERW pipes are used as casing and tubing in wells to protect the wellbore and facilitate the extraction of resources.
Machinery and Equipment: ERW pipes can be used as shafts, cylinders, and structural supports. ERW pipes can be customized and processed according to the specific requirements of different machinery, providing the necessary mechanical properties and durability.
Furniture and Decor: ERW pipes can be bent and welded into unique shapes to create chairs, tables, and shelves. In decorative items such as railing designs and light fixtures, ERW pipes add a stylish and industrial look.
Agriculture: ERW pipes are used in irrigation systems to transport water to the fields.Also used in the construction of agricultural machinery and equipment such as barns and storage structures.
Sports and Recreation: ERW pipes are used in the manufacturing of sports equipment such as basketball hoops, soccer goalposts, and fitness equipment.
Why Choose YOUFA Steel Pipe?
Tianjin Youfa Steel Pipe Group Co., Ltd. was established on July 1, 2000, Youfa is a large scale steel products manufacturing enterprise. In December 2020, Youfa Group successfully landed on the main board of Shanghai Stock Exchange .We mainly manufacture ERW steel pipe, galvanized steel pipe, hollow section steel pipes, SSAW steel pipe, plastic lining composite pipe, plastic coated steel pipe, stainless steel pipe and pipe fitting, and scaffolding, etc.
We have built a long-term cooperation with many clients, and have received word of praise from customers all over the world.possessing normative QAS, we have acquired certificates of API5L, ISO9001,ISO14000, ISO18000, FPC, BSI and UL/FM quality system.We are committed to meet customer's various after-processing requirements.
Carbon steel pipes meet the following standards: API 5L, ASTM A53/A500,ASTM A795, EN10219/10255, BS1387,BS1139, EN39, ISO65, DIN2440, JIS G3444/3466, etc. and are approved by the Third Party. They are widely used in oil and natural gas, low pressure liquid and mineral powder delivery, and for industrial and civil construction fields and for piles field.
Some common types of API pipes
API 5L Line Pipes
API 5L pipeline is used for long-distance transportation of oil and natural gas in pipelines. It has different levels, such as X42, X52, X60, X70, and higher levels. Each level has specific mechanical properties, and typically the higher the pressure requirements, the higher the level used.
API 5CT Casing and Tubing
API 5CT is used for oil and gas wells to provide structural support for the wellbore. Each type of casing has specific mechanical properties and performance characteristics, and common grades include J55, K55, N80, and P110.These grades represent the minimum yield strength of steel, such as the strength of N80 casing being higher than J55.
API 5DP Drill Pipe
API 5DP drill pipe is a hollow tubular structure made of high-strength steel.The threaded connections, known as tool joints, are critical components as they need to provide a strong and reliable connection between sections of drill pipe and also withstand the repetitive make-up and break-out operations during drilling.
What is the difference between ASTM A53 and A795?
ASTM A53 ERW pipe
Technical Requirements:
Grade A and Grade B carbon steel are allowed to be used. Grade A carbon content is usually less than 0.25%, with a minimum tensile strength of about 415MPa and a yield strength of at least 240MPa. It has good weldability and processability and is suitable for general pipeline applications.Grade B carbon content is usually as high as 0.30%, with a minimum tensile strength of 485 MPa and a yield strength of not less than 290 MPa. It can be applied to higher strength applications such as oil and gas pipelines.
Application:
oil and gas transportation, water and gas supply in building structures, and general industrial fluid conveyance
ASTM A795 eRW tube
Technical Requirements:
The minimum tensile strength is usually above 450 MPa with a higher yield strength to prevent deformation or rupture under fire service pressure. The elongation requirement is also higher, typically over 25% for better impact resistance.Emphasizes impact toughness as the pipe may be subjected to high temperatures, rapid cooling, and potential impacts during a fire.
Application:
Primarily used in fire suppression systems like automatic sprinkler systems and fire hydrant systems
Ultimate FAQ Guide To ERW Steel Pipe
What is the meaning of ERW?
+
-
ERW refers to a manufacturing process,It is electric current is used to create heat at the seam of the metal pieces being joined.This heat causes the metal to melt and fuse together, creating a welded joint. This method is commonly used to make steel pipes by forming flat strips of steel into a tubular shape and then welding the longitudinal seam using electric resistance heating.
What is the grade of ERW material?
+
-
For carbon steel ERW pipes, common grades are often classified based on standards such as ASTM.For example:
ASTM A53:Includes two grades of carbon steel pipes - Grade A and Grade B. These are widely used in general piping applications for transporting fluids such as water, oil, and gas in industrial and construction settings.
API 5L:This specification applies to pipelines and defines different grades, such as X42, X52, X60, X70, etc. These are used in the oil and gas industry and have the ability to withstand high pressure and harsh environments
What are the APl grades of pipe?
+
-
API 5L line pipes which are used for transporting oil and gas in pipelines, common grades include X42, X52, X60, X65, X70, and X80. The numbers in these designations represent the minimum yield strength of the pipe material in pounds per square inch (psi). So, an X52 pipe has a minimum yield strength of around 52000 psi,an X60 pipe has a minimum yield strength of around 60,000 psi.With the increase of numbers, the strength and performance requirements of pipes also correspondingly increase.
+
-
+
-
