Scaffolding Pipe

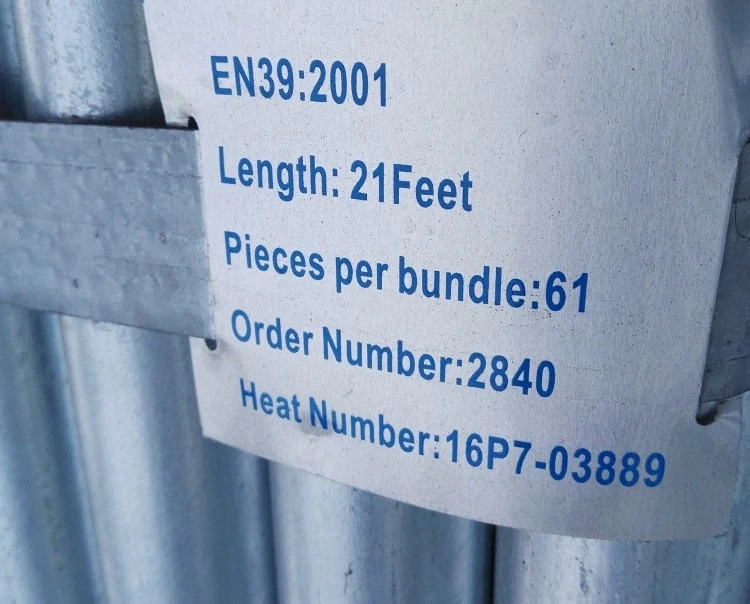

EN39 Scaffold tube
The specified outside diameter is 48,3 mm and the specifed wall thickness is 3,2 mm for type 3 and 4,0mm for type4.

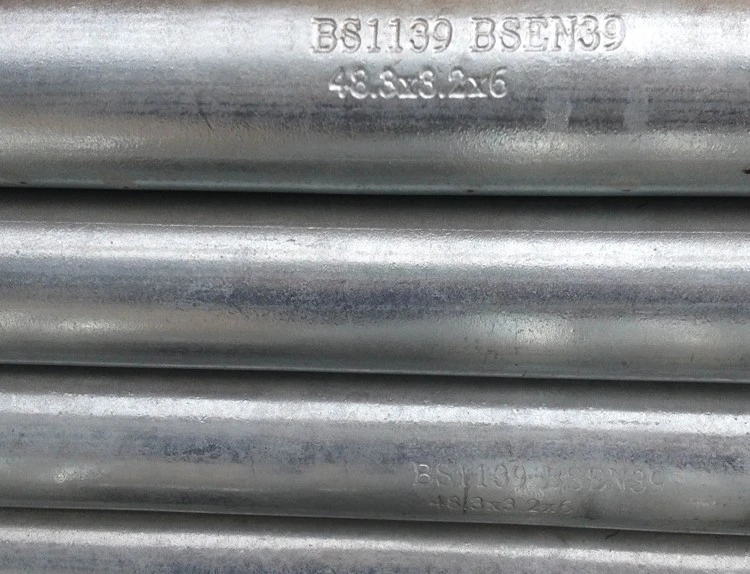

BS1139 scaffolding pipe
The tube is referred to as “ type 4 ”tube and represents a wall thickness of 4,0 mm.
Scaffold Pipes Specification
| Material | Carbon Steel | ||||
| Grade | Q235 Al killed = S235GT Q345 Al killed = S355 |
||||
| Standard | EN39, BS1139 | ||||
| Surface | Zinc coating 280g/m2 (40μm) the thickness of the coating shall be not less than 40 μm |
||||
| Ends | Plain ends（with or without caps） | ||||
| Specification | Outside Diameter | Tolerance on Specified OD | Thickness | Tolerance on Thickness | Mass per Unit Length |
| BS1139 TYPE 4 | 48.3mm | ±0.5mm | 4.0mm | -10% | 4.37kg/m |
| EN39 TYPE 3 | 3.2mm | -10% Seamless -15% |
3.56kg/m | ||
| EN39 TYPE 4 | 4.0mm | 4.37kg/m | |||

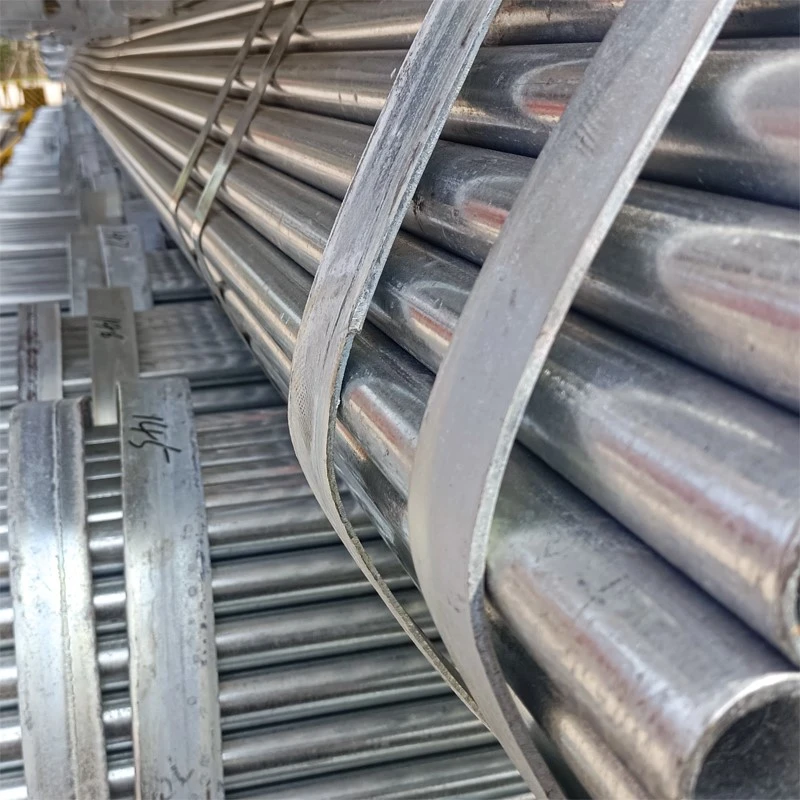

Characteristics of galvanized scaffold steel pipes
High strength and load-bearing capacity: Steel pipes maintain the high strength that scaffolding steel pipes should have and can withstand various loads during construction.
Stability: By using reasonable connections and construction methods, a stable structure is formed to reduce the risk of shaking and deformation.
Dimensional accuracy: The outer diameter, wall thickness, and other dimensions are relatively uniform and accurate, making it easy to connect and assemble.
 |
 |
 |
Scaffold Pipes Chemical Properties
EN39 Chemical composition
BS1139 Chemical Components: Carbon(C), Silicon(Si), Mn(manganese),Phosphorus(P), Sulphur(S), and Nitrogen(N)
BS1139 Chemical composition
BS1139 Chemical Components: Carbon(C), Silicon(Si), Phosphorus(P), Sulphur(S), and Nitrogen(N)
BS1139 VS EN 39 Standard
It can be seen that the BS1139 standard provides requirements for N, while the EN 39 scaffolding standard provides requirements for Al and Mn in the chemical composition.
| EN 39 | BS1139 | |
| Yield Strength | Min 235 MPa | ≥ 235 MPa |
| Tensile Strength | 340-520 MPa | 340-480 MPa |
| Elongation | Min 24% | ≥ 24% |
Mechanical Property
In terms of mechanical properties, the EN 39 scaffolding pipe standard requires a tensile strength performance that is 40 MPa higher than BS1139.
 |
 |
 |
Scaffold Pipes Manufacture
Youfa Steel Pipe Group ensures that every steel pipe meets the quality standards of BS1139 or EN39 before being sent to the market.
During the production of galvanized scaffold pipe, the following steps require special attention.
Zinc Coating Quality
The thickness of the zinc coating layer should be within the range of 40-80 μm, and the thickness deviation should be controlled within ± 10 μm.
Dimensional Accuracy
The deviation of the outer diameter is controlled within ± 0.5mm, the deviation of the wall thickness is controlled within ± 0.3mm, and the deviation of the length is controlled within ± 50mm .
Weld Quality
The width of the weld seam should be relatively consistent, usually between 8mm and 12mm, and the strength of the weld seam should be evaluated through tensile or bending tests.
Scaffold Tube Testing
In Youfa's testing laboratory, the testing personnel will first use a spectral analyzer to detect the material composition of the steel pipes, and then conduct tensile tests on a universal material testing machine to evaluate the strength. For the galvanized layer, use a magnetic thickness gauge to measure the thickness, and then conduct a grid test to check the adhesion. Dimensional measurement will use various measuring tools to accurately measure at multiple locations.

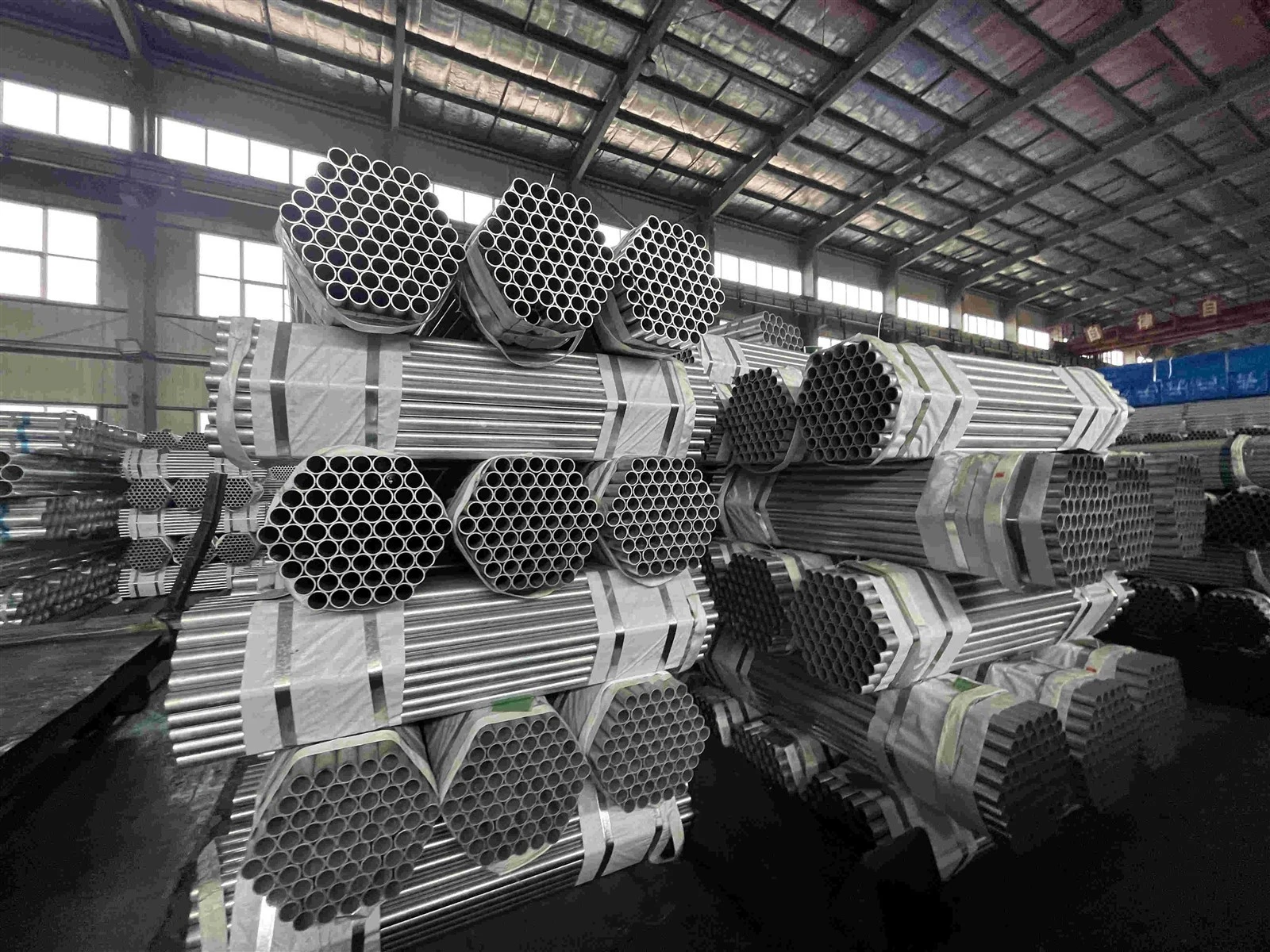

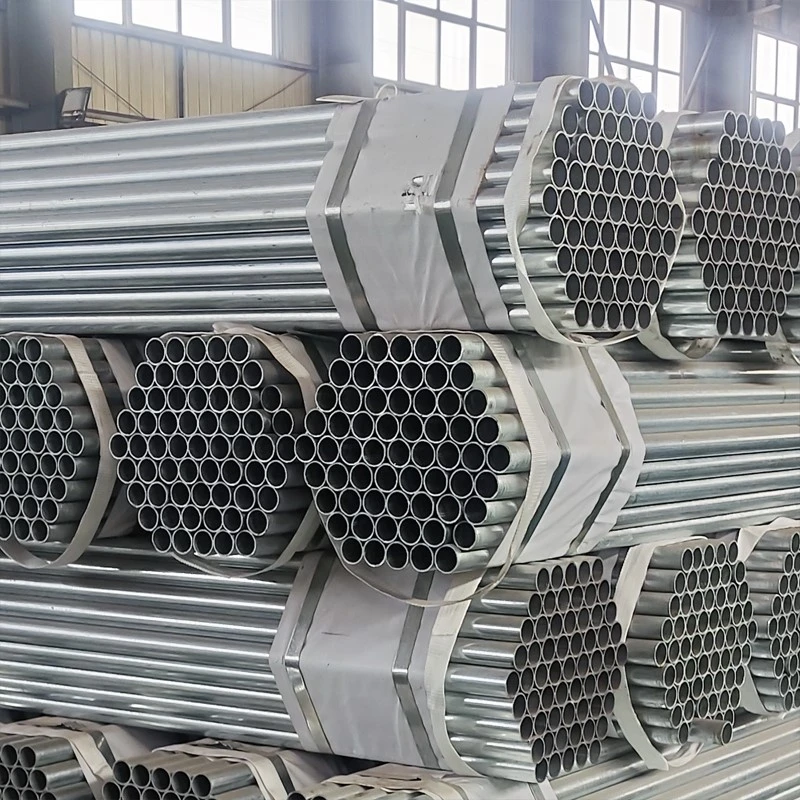

Scaffold Tube packing & Loading
 |
 |
Protective measures: Wrap steel pipes with rust proof paper, plastic film, or other rust proof materials to prevent rusting during transportation and storage.
Binding and fixing: Steel strips, steel wires, or specialized binding straps are used to firmly tie the steel pipes to prevent the scaffolding steel pipes from moving and colliding inside the packaging.

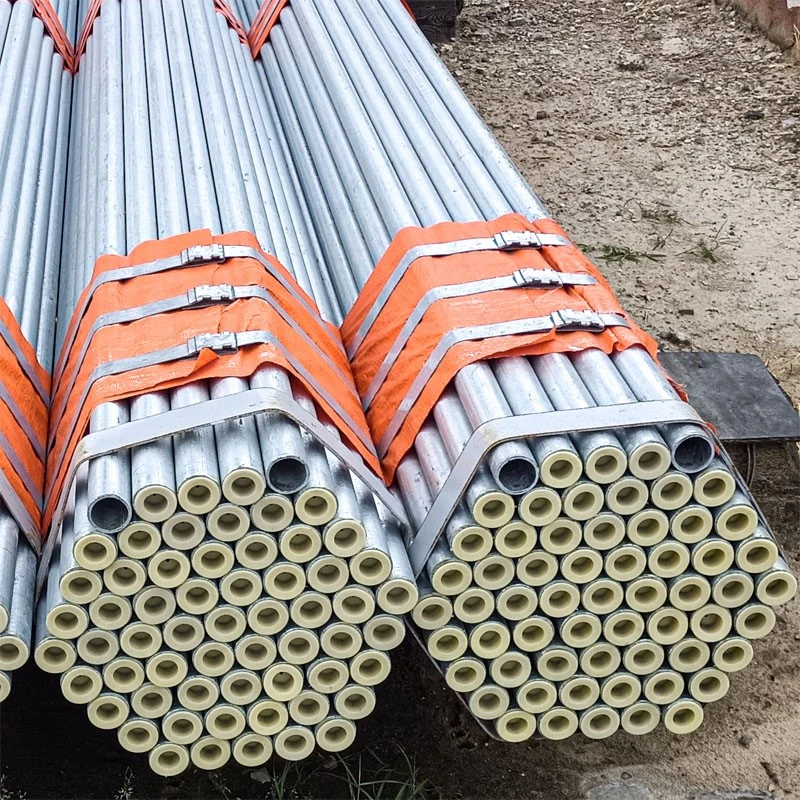

Corner protection: For the ends and sharp corners of scaffolding steel pipes, protective covers or corner protectors should be used for protection.
Scaffold Tube Products
 |
|
 |
 |
Application of scaffold steel pipes
Civil construction:New construction, renovation, and expansion projects for residential buildings, office buildings, and other structures.
Industrial construction:The construction and renovation of industrial facilities such as factory buildings, warehouses, workshops, etc.
Infrastructure construction:Construction and maintenance of bridges, roads, and tunnels
Energy facility construction:Construction and maintenance of power towers, oil and gas stations.
Construction of public facilities:Construction of public buildings such as schools, hospitals, subway stations, and sports centers.
Landscape engineering:Climbing support during operations such as large parks, tree pruning, and installation of landscape lights.
Why Choose Youfa Group
Tianjin Youfa Steel Pipe Group Co., Ltd. was established on July 1, 2000, Youfa is a large scale steel products manufacturing enterprise. In December 2020, Youfa Group successfully landed on the main board of Shanghai Stock Exchange .We mainly manufacture ERW steel pipe, galvanized steel pipe, hollow section steel pipes, SSAW steel pipe, plastic lining composite pipe, plastic coated steel pipe, stainless steel pipe and pipe fitting, and scaffolding, etc.
Besides headquartering in Tianjin, currently we have 13 subsidiariesand branches in Tangshan, Handan, Shaanxi and Liyang. Currently, there are totally about 9000 employees and 293 production lines in 13 factories, 3 national accredited laboratory, and 1 Tianjin government accreditedbusiness technology center.
Tangshan Youfa New Building Equipment Co., Ltd., as one of the subsidiaries of YOUFA Group, mainly produces scaffolding products. The product range includes ring-lock scaffolding system,frame, coupler system scaffolding, cup-lock scaffolding system, steel props and the accessories like screw base jack and u head jack.All scaffolding pipes are tested compliant to standards of BS1139, EN39, GB/T 3091 & GB/T13793, etc.
What size is standard scaffolding steel pipe?
The standard length of galvanised scaffold tube is often 1 - 6 meters.
The standard outer diameter of scaffolding steel pipe is typically around 48.3mm.
The standard thickness of the tubes scaffolding is commonly 3.6mm.
However, for BS 1139 standard scaffolding steel pipes, common thicknesses can be 3.2mm and 4.0mm.
For EN 39 standard scaffold steel pipes, typical thicknesses may include 2.8 mm and 3.6 mm.
Youfa Group can customize the thickness of scaffold steel pipes according to customer needs, with a thickness range of 2.5mm to 4.0mm
A thinner thickness of 2.5mm or 2.75mm can be used for applications with relatively low load-bearing requirements, or for temporary and low demand settings.
A thickness of 3.0mm is typically suitable for general construction projects with moderate loads and heights.
Thicknesses of 3.25mm, 3.5mm, or even 4.0mm are suitable for heavier and high-rise scaffolding systems, to ensure sufficient strength and stability under higher expected loads.
What is steel scaffolding?
Steel scaffold is a temporary structure mainly made of steel members.It typically consists of vertical steel tubes called standards or uprights, horizontal tubes known as ledgers or transoms, diagonal braces for stability, and various types of couplers or connectors to join the components together.
Due to its strength, durability, and ability to withstand heavy loads and harsh weather conditions, steel scaffolding is often the preferred choice in many cases.
Galvanized scaffold tubes,painted scaffold tubes and powder-coated scaffold tubes.
According to the surface treatment way, there are definitely three types of scaffold tubes. Galvanized scaffold tubes, painted scaffold tubes, and powder-coated scaffold tubes.
Galvanized scaffold pipe: Zinc coating provides excellent rust and corrosion protection, making it very durable, especially in outdoor and humid environments. They are typically used for large-scale construction projects that have a long duration and are exposed to natural environments.
Painted scaffolding pipe: The paint layer provides some anti-corrosion protection, but may not be as strong as the galvanized layer. Generally speaking, they may be more cost-effective than galvanized pipes. They can be chosen for smaller construction sites or projects that have aesthetic impact.
Powder coated scaffold tube: Smooth and uniform coating, providing good protection, resistant to fragmentation and scratches. Compared to some traditional painting methods, powder coating technology is often more environmentally friendly. In industries such as cleanrooms or food processing facilities that require clean and durable surface treatments, they may be the preferred choice.
Ultimate FAQ Guide To Scaffolding Tube
Do scaffold tubes rust?
+
-
Although galvanized scaffolding pipes have a layer of zinc, they can provide a certain degree of rust protection. But if the galvanized zinc coating is damaged or worn, even the galvanized pipe will rust. Pipes that are not galvanized or have poor coating are more prone to rusting.
Environmental conditions also play a role. In areas with high humidity, salt exposure (near the coast), or frequent exposure to rain and chemicals, the risk of rusting is increased.
How do you calculate scaffolding pipe weight?
+
-
Calculate the weight of individual tubes: You can use the formula for the volume of a cylinder (π * (radius^2) * length) to calculate the volume of each tube. Then multiply the volume by the density of the material (for steel, it's approximately 7850 kg/m³) to get the weight of each tube.
For example, for a tube with an outer diameter of 48.3 mm (radius = 0.02415 m), a thickness of 3.6 mm (inner radius = 0.02055 m), and a length of 3 m:Volume = π * ((0.02415^2)
What is the basic difference between tube & fitting & system scaffolding?
+
-
Tube & Fitting Scaffolding:
Components: Consists of individual steel tubes and separate fittings like couplers, clamps, and joints.
Assembly: Requires manual assembly and disassembly of tubes and fittings, which can be time-consuming.
System Scaffolding:
Components: Comprises pre-engineered and standardized modular components that are designed to fit together precisely.
Assembly: Is quicker and easier as the components are designed for straightforward connection.
What is the size of scaffolding pipe clamp?
+
-
For standard 48.3mm diameter scaffolding pipes, the clamp may have an inner diameter of approximately 48mm to 50mm to ensure a snug fit.The width of the clamp could range from 50mm to 80mm.Right-angle clamps, swivel clamps, and couplers, and their sizes can differ based on their specific function and design.
Scaffolding types and scaffolding pipes
+
-
Frame Scaffolding: Comprises prefabricated frames connected together. Scaffolding pipes are used as the main structural components to form the frames.
Tube and Coupler Scaffolding: Consists of individual pipes connected using various types of couplers.
System Scaffolding: Prefabricated modular components that are designed to fit together precisely. The pipes in this type are usually of specific dimensions and connections.
Scaffolding pipes play a crucial role in all these types. They need to meet certain standards in terms of material quality, diameter, wall thickness, and strength to ensure the safety and stability of the scaffolding structure.
